Frame Filter Component

Overview

This component enables easily adding a framed outline to UI components. It supports automatic resizing to fit the content, padding, different shapes, anti-aliased rendering, and rounded corners.

WebGL Demo

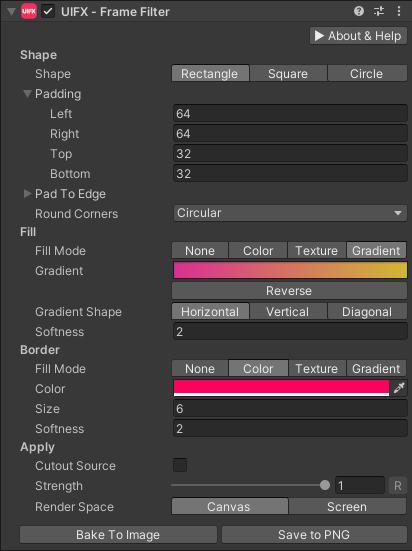

Properties

Property	Type	Range	Default	Description
Shape
Shape	Enum		Rectangle	The base shape to render around the source content. Options are: • Rectangle: Has the most flexibility. • Square: Ensures the frame has equal width and height. • Circle: Ensures the frame has constant radius.
Padding	Float	[-inf..inf]	16.0	For each Rectangle edge expands the edge length in pixels. For Square and Circle shapes this is a single value that controls radius padding.
Pad To Edge	Bool		False	For each Rectangle edge allows padding value to be ignored and instead extends the length to the screen edge.
Round Corners	Enum		None	The type of rounded corners to use for the Rectangle or Square shapes. Options are: • None: No rounded corners. • Small: 12.5% rounded corners. • Medium: 25% rounded corners. • Large: 50% rounded corners. • Circular: 100% rounded corners • Percent: Value between 0..1 relative to the size of shape. • Custom Percent: Specify each of the 4 corner sizes in 0..1 range. •Pixels: A single value in pixel units. • Custom Pixels: Specifyt each of the 4 corner sizes in pixels.
Fill
Color	Color		Black	The color to fill the frame with.
Border
Size	Float		0.0	The size of the border in pixels.
Color	Color		White	The color to fill the border with.
Apply
Cutout Source	Bool		False	Whether to render the source graphic on top of the frame, or to use the source graphic to make a hole in the frame.
Strength	Float	[0..1]	1.0	Strength of the effect.

Usage

Add this component to any GameObject that contains a UI Graphic component (eg Text, Image, RawImage, etc). The object will now render with a shadow.

Usage with TextMeshPro

To use this filter effect with TextMeshPro use the Filter Stack (TextMeshPro) component.
