Dissolve Filter (beta) Component

Overview

This component applies a filter to the Unity UI component to create an effect of the component appearing/disappearing in a variety of effects based on the texture map and parameters used.

WebGL Demo

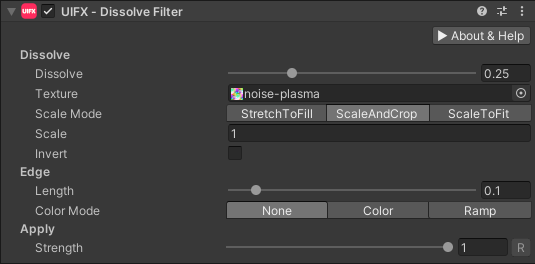

Properties

Property	Type	Range	Default	Description
Dissolve
Dissolve	Float	[0..1]	0.25	The amount to dissolve by.
Texture	Texture			The texture that controls the pixel dissolve order. RGB channel is used. Darker pixels are dissolved first.
Scale Mode	Enum		ScaleAndCrop	How the texture is scaled to the Graphic this effect is being applied to. Options are: • StretchToFill: Texture is stretched and doesn't maintain it's aspect ratio, but it does fill the entire Graphic. • ScaleAndCrop: The texture maintains aspect ratio, but part of it may be cropped to fill the entire Graphic. (DEFAULT) • ScaleToFit: The texture maintains aspect ratio, but it will not fill the entire Graphic unless it's Wrap Mode is set to Repeat/Mirror.
Scale	Float	[-∞..∞]	1.0	An additional scale value to increase/decrease the scale of the texture
Invert	Bool		False	Inverts the texture dissolve pixel order to use brightest pixels first.
Edge
Length	Float	[0..1]	0.1	The length of the edge used to fade the dissolve effect or add a color/texture ramp.
Color Mode	Enum		None	How the edge length is filled. Options are: • None: The edge is faded to transparency. (DEFAULT) • Color: The edge is tinted a fixed color. • Ramp: A horizontal gradient texture is used to fill the edge.
Color	Color		Black	The color to fill the edge with.
Ramp	Texture		White	The horizontal gradient texture to fill the edge with.
Emissive	Float	[0..10]	0.0	Values above zero will increase the brightness of the edge color/texture allowing the edge to glow when using a Bloom filter.
Apply
Strength	Float	[0..1]	1.0	Strength of the effect.

Setup

To use this BETA component with you first need to enable support for Beta features:

1. Go to the Edit > Project Preferences window and open the UIFX options, enabled Beta Features and press the Apply Changes button.


2. Wait for the scripts to reload
3. Close the Preferences window

Usage

Add this component to any GameObject that contains a UI Graphic component (eg Text, Image, RawImage, etc).

Usage with TextMeshPro

To use this filter effect with TextMeshPro use the Filter Stack (TextMeshPro) component.
